stainless steel webnet with sleeves

Material : 304,316,316L etc

Wire diameter : 1-4mm

Mesh size : 20*20-300*300mm

Angle : 60 degree-90 degree

Type : ferrule net

Wire structure : 7*7 or 7*19

Color : Silver, Black

Size : can produce any size and shape

Name : X-tend cable mesh fabric

Material :304,316,316L etc

Wire diameter :1-4mm

Mesh size :20*20-300*300mm

Angle :60 degree-90 degree

Type :ferrule net

Wire structure :7*7 or 7*19

Color :Silver, Black

Size :can produce any size and shape

Name :X-tend cable mesh fabric

More info

product description

Product Description:

X-tend stainless steel cable nets provides a diamond pattern mesh with crimped ferrule joints, This is used extensively for architecture application, balustrade, railing infill, Mesh can be applied in either a vertical or horizontal direction and development in new manufacturing techniques using smaller gauge cables has allowed us to produce a range of finer weave nets that are particularly suitable for many bird applications and aviaries. The material is flexible and robust making it ideal for contoured and irregular shaped apertures and spaces.

SS304: (%) C:≤0.07, Si :≤1.0, Mn :≤2.0, Cr :17.0-19.0, Ni :8.0-11.0, S :≤0.03, P :≤0.035

SS316: (%) C:≤0.08, Si:≤1.00, Mn:≤2.00, P≤:0.035, S:≤0.03, Ni:10.0-14.0, Cr:16.0-18.5

SS316L : (%)C:≤0.03, Si:≤1.00, Mn:≤2.00, P:≤0.045, S:≤0.030, Cr:16.0～18.0, Ni:12.0～15.0

Feature:

Stainless steel cable mesh is light, and has good softness, easy to install.

All of the parameters for Stainless steel cable mesh can be modified according to customer's requirement.

It is made of high quality stainless steel wire, It is strong, corrosion-resistant, possessing extremely high load capacity.

Its service life can reach several tens of years, and the maintenance cost is very low.

Stainless steel cable mesh has diamond-shape openings, smooth surface and beautiful appearance, High Perspective, To provide protection without affecting the appreciation of the landscape.

It’s green, no any pollution, easy to clean.

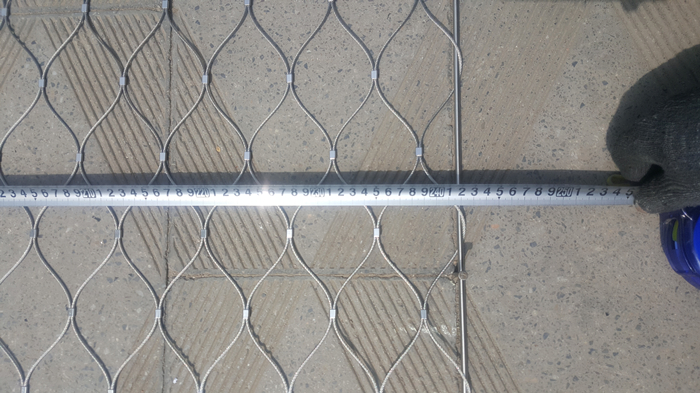

Products show:

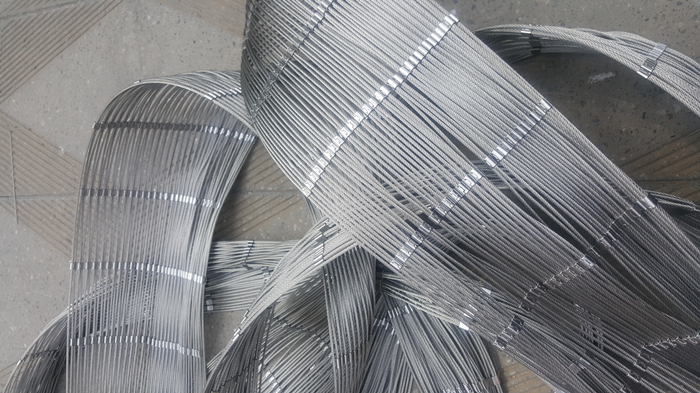

Stainless steel ferrule cable mesh is constructed of AISI 316 stainless steel cables and stainless steel ferrules to make a resilient metal fabric that forms a diamond pattern as it is installed. Mesh sizes range from 20mm to 200mm and cable diameters from 1.0mm to 4.0mm to match your design requirements.

Stainless steel ferrule net is strong yet transparent while permitting high load capacity and long spans, Flexible stainless steel cable mesh is a sustainable building element. It is maintenance-free, corrosion-resistant, requires no caustic cleaners or coatings, and is fully recyclable. It is particularly well suited for even the harshest climates.Product Description:
